Tribology is the science of interacting surfaces in relative motion — the study of friction, wear, and the conditions that govern material loss at contact interfaces. Every chain is a tribological system. Its links pivot against each other under load with every movement, generating friction at the contact surfaces and removing material incrementally with each cycle. The rate at which that material is removed — the wear rate — is not a function of vague density or mass. It is a function of specific, measurable variables quantified by the Archard wear equation: normal load, sliding distance, and the hardness of the material at the contact surface. Hardness is inversely proportional to wear rate. This is why 14k gold at 150–180 HV outperforms soft alloys in tribological service, why mirror-polished link interiors reduce the friction coefficient that governs how much load the contact surface sustains, and why abrasive contamination accelerates wear by introducing hard particles that bypass the hardness advantage of the base metal entirely. This guide examines the tribology of interlocking chain links and explains the physics behind each variable in the system.
The Physics of Tribology
Tribology encompasses three interrelated phenomena: friction, the resistance force opposing relative motion between two surfaces in contact; wear, the progressive removal of material from those surfaces as a consequence of that motion; and lubrication, any mechanism that reduces the severity of surface interaction. In an interlocking chain, all three are present simultaneously. The links pivot under tension at every contact point with each step, generating a friction force at the interface. That friction force drives adhesive and abrasive wear — material transfer between surfaces and the cutting action of surface asperities against each other. The governing model for adhesive wear is the Archard equation: wear volume equals the product of a wear coefficient, normal load, and sliding distance, divided by the hardness of the softer material in the contact pair. Each variable in that equation is controlled by a design decision: hardness by alloy selection and work hardening, normal load by geometry and pendant weight, sliding distance by link design and movement frequency, and wear coefficient by surface finish and contamination state. ScienceDirect: Tribology — Friction, Wear, and the Archard Equation in Metal Contact Systems
Kinetic Friction at the Contact Interface
When two metal surfaces slide against each other, the friction force at the interface is the product of the normal load pressing them together and the coefficient of kinetic friction between them. At the microscopic scale, friction arises from two mechanisms: adhesion, where atomic-scale contact between asperity tips creates junctions that must be sheared as the surfaces slide; and plowing, where harder asperities on one surface cut grooves into the softer one. Both mechanisms transfer energy into the contact zone as heat and produce wear debris — small fragments of material detached from the asperity junctions or plowed grooves. The Archard equation predicts that wear volume from adhesive wear is inversely proportional to the hardness of the softer surface: a material twice as hard under identical contact conditions produces half the wear volume per unit of sliding distance. For jewelry hardware, this means alloy hardness is the primary material variable governing how quickly the contact surfaces at link junctions lose dimension over the service life of the piece. ScienceDirect: Kinetic Friction — Adhesion, Plowing, and Wear Volume in Metal-to-Metal Sliding Contacts
Wear Rate and Material Hardness
14k gold at 150–180 HV Vickers hardness sits significantly above the softer gold alloys and plated base metals that populate the commercial jewelry market. Plated items typically present base metal substrates in the 60–100 HV range once the plating wears through at contact points; sterling silver annealed runs 60–100 HV; and lower-karat or improperly alloyed gold can fall below 100 HV. The Archard equation's inverse proportionality between hardness and wear volume means that a 14k gold contact surface at 150 HV sustains roughly half the wear rate per unit of sliding distance compared to a surface at 75 HV under the same load. Over years of daily wear cycles, that factor-of-two difference in wear rate determines whether the link contact surfaces maintain their gauge within visible tolerance or show measurable thinning at the junction points. Wear is never zero in any real system — every contact cycle removes some material — but the rate at which it occurs is governed by the Archard relationship, and 14k gold's hardness places it well toward the low end of that rate for jewelry-grade metals. ScienceDirect: Adhesive Wear — Archard Law, Hardness Dependence, and Material Loss Rate in Metal Tribological Systems

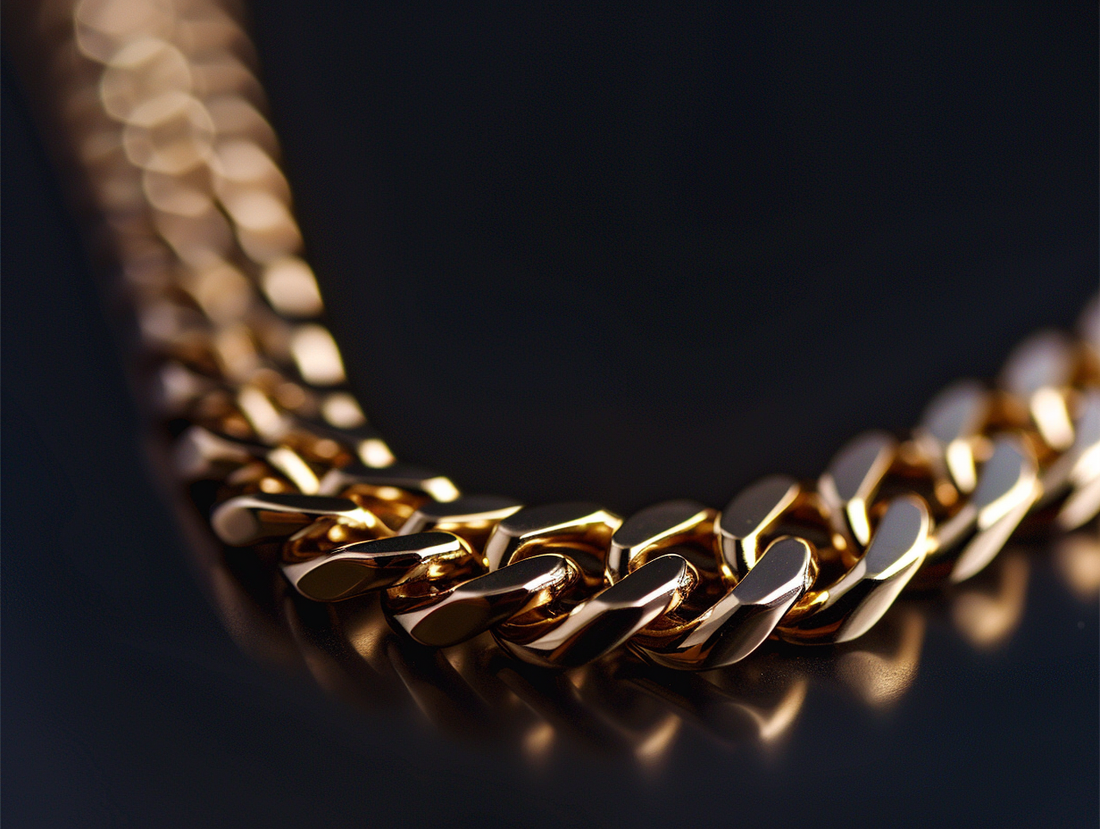

Cuban Link Contact Planes
Link geometry determines the contact area over which the normal load is distributed, which directly affects the contact pressure — the force per unit area — at the interface. The Archard equation's wear rate is proportional to normal load, but the relevant variable at the material level is contact pressure: higher pressure means higher local stress at asperity junctions, more adhesive junction formation per unit area, and higher wear rate. Cuban link geometry presents broad, flat interlocking faces that distribute the normal load across a wide contact area, keeping contact pressure comparatively low for a given pendant weight or chain tension. This is a tribological advantage built into the geometry: the same load that would produce high contact pressure at a narrow point contact is distributed over a much larger area in a flat-face Cuban link design, reducing the Archard wear rate contribution from the contact pressure variable without changing the alloy or the surface finish. ScienceDirect: Contact Pressure — Normal Load Distribution, Contact Area, and Wear Rate in Interlocking Metal Structures
Cable Link Point Contacts
Cable chain geometry presents a fundamentally different tribological condition: the rounded wire cross-sections of adjacent links contact each other at near-point contacts rather than broad planes. Hertzian contact theory predicts that for a given normal load, a smaller contact radius produces a higher peak contact pressure at the contact center — and higher contact pressure drives a higher adhesive wear rate per the Archard relationship. Cable links therefore require the alloy's hardness to carry more of the wear resistance load, since geometry contributes less to pressure reduction. At 150–180 HV, 14k gold provides sufficient hardness to keep the wear rate at these concentrated contact points at an acceptable level across a service life of daily wear. The solid cross-section of the wire is also relevant here: the contact load is carried through the full solid cross-section rather than a thin wall, which maintains the geometric integrity of the contact point as wear proceeds. ScienceDirect: Hertzian Contact — Point Contact Pressure, Load Distribution, and Wear Rate at Curved Metal Interfaces
Surface Topography and Friction Coefficient
The coefficient of friction at a metal-to-metal contact interface is governed in part by the surface roughness of both contacting surfaces. At the microscopic scale, friction arises from asperity interactions: the higher and more densely packed the asperities on the contact faces, the greater the real contact area under load, the more adhesive junctions formed per unit of sliding distance, and the higher the friction coefficient and wear rate. A mirror-polished link interior at Ra ≤ 0.05 μm presents minimal asperity height — fewer and smaller contacts per unit area, lower effective friction coefficient, and proportionally lower wear rate per the Archard relationship. The surface finish does not change the alloy's hardness, but it reduces the wear coefficient term in the Archard equation by minimizing the asperity density that governs how efficiently the normal load translates into material-removing junction formation. Both hardness and surface finish contribute independently to the wear rate, and both move in the correct direction simultaneously in a well-specified solid 14k gold link. ScienceDirect: Surface Roughness and Friction — Ra Value, Asperity Contact, and Wear Rate Reduction in Polished Metal Systems
Maintenance of the Contact Zone
Third-body wear is the accelerated material removal that occurs when hard abrasive particles enter the contact zone between two sliding surfaces. Environmental grit, dried salt crystals, and skin debris are substantially harder than gold at the microscopic scale — quartz particles, for example, run approximately 1100 HV, far above the 150–180 HV of 14k gold. When such particles enter the link junctions, they function as abrasive cutting tools rather than mere contaminants, driving a wear mechanism that operates independently of the alloy's hardness advantage in two-body sliding. The Archard relationship's hardness term governs two-body adhesive wear; three-body abrasive wear is governed instead by the hardness ratio between the abrasive particle and the workpiece surface. Maintaining the contact zone means interrupting this mechanism before it can progress: warm water and a soft brush flush abrasive particles from link junctions and exterior surfaces, restoring the two-body metal-to-metal contact condition where 14k gold's hardness provides its full tribological advantage. ScienceDirect: Abrasive Wear — Third-Body Particles, Hardness Ratio, and Contact Zone Contamination in Metal Tribological Systems
Tribology FAQ
| Question | Factual Answer |
|---|---|
| What is tribology? | Tribology is the science of interacting surfaces in relative motion, encompassing friction, wear, and lubrication. In jewelry hardware, it governs how chain links wear against each other during daily movement. The Archard wear equation is the primary model: wear volume is proportional to normal load and sliding distance, and inversely proportional to the hardness of the contact surface material. Every design decision in Peelerie's chain hardware — alloy selection, surface finish, link geometry — affects one or more variables in this equation. |
| Why do chain links wear out? | As links pivot against each other, friction at the contact interface drives two mechanisms of material removal: adhesive wear, where atomic-scale junctions form between asperity tips and are sheared as the surfaces slide; and abrasive wear, where harder asperities on one surface cut grooves into the other. The Archard equation predicts wear volume from adhesive wear is inversely proportional to hardness — softer alloys lose material faster per unit of sliding distance under identical contact conditions. Abrasive contamination from environmental grit accelerates this by introducing particles far harder than the gold itself, driving three-body abrasive wear that bypasses the hardness advantage of the base metal. |
| How does Peelerie reduce wear rate? | Through two independent, compounding mechanisms. First, the 14k gold alloy at 150–180 HV Vickers hardness sits well above softer jewelry metals in the Archard equation's hardness term, reducing adhesive wear rate proportionally. Second, the mirror-polished link interior at Ra ≤ 0.05 μm minimizes asperity density at the contact surface, lowering the friction coefficient and the effective wear coefficient simultaneously. High hardness reduces how much material is removed per adhesive junction formed; low surface roughness reduces how many junctions form per unit of sliding distance. Both variables move in the correct direction in the same contact system. |
| Do Cuban links wear differently than cable links? | Yes, because their contact geometry presents different tribological conditions. Cuban links feature broad, flat interlocking faces that distribute the normal load across a large contact area, reducing contact pressure and the Archard wear rate contribution from that variable. Cable links contact each other at near-point contacts governed by Hertzian contact mechanics, where smaller contact radii produce higher peak contact pressure for the same normal load. The higher contact pressure at cable link junctions means the alloy's hardness carries more of the wear resistance load — which is why solid 14k gold at 150–180 HV is the correct material specification for both geometries, while softer alloys would show unacceptable wear rates particularly at cable link contact points. |
| Does dirt make friction and wear worse? | Yes — significantly. Environmental grit, salt crystals, and skin debris that enter link junctions introduce hard abrasive particles into the contact zone. These particles are typically far harder than gold (quartz, for example, runs approximately 1100 HV versus 150–180 HV for 14k gold), converting the contact from a two-body metal-to-metal sliding system governed by the gold's hardness into a three-body abrasive system governed by the hardness ratio between the particle and the gold surface. The result is an accelerated wear rate that the alloy's hardness advantage cannot mitigate. Periodic cleaning with warm water and a soft brush removes these particles before they can act as sustained abrasives, restoring the contact condition where 14k gold's tribological properties apply. |
The wear rate of a chain is not a matter of feel or impression — it is governed by the Archard equation, in which hardness is the primary material variable and surface roughness determines the wear coefficient. 14k gold at 150–180 HV reduces adhesive wear rate by inverse proportion to its hardness advantage over softer jewelry metals. Mirror-polished link interiors at Ra ≤ 0.05 μm reduce the friction coefficient and the rate of junction formation per sliding cycle. Cuban link geometry distributes contact pressure over broad faces; cable link geometry concentrates it at point contacts where hardness carries the full tribological load. And periodic cleaning removes the third-body abrasive particles that would otherwise drive a wear mechanism independent of all three advantages simultaneously. Each decision addresses a specific variable in the same governing equation.
